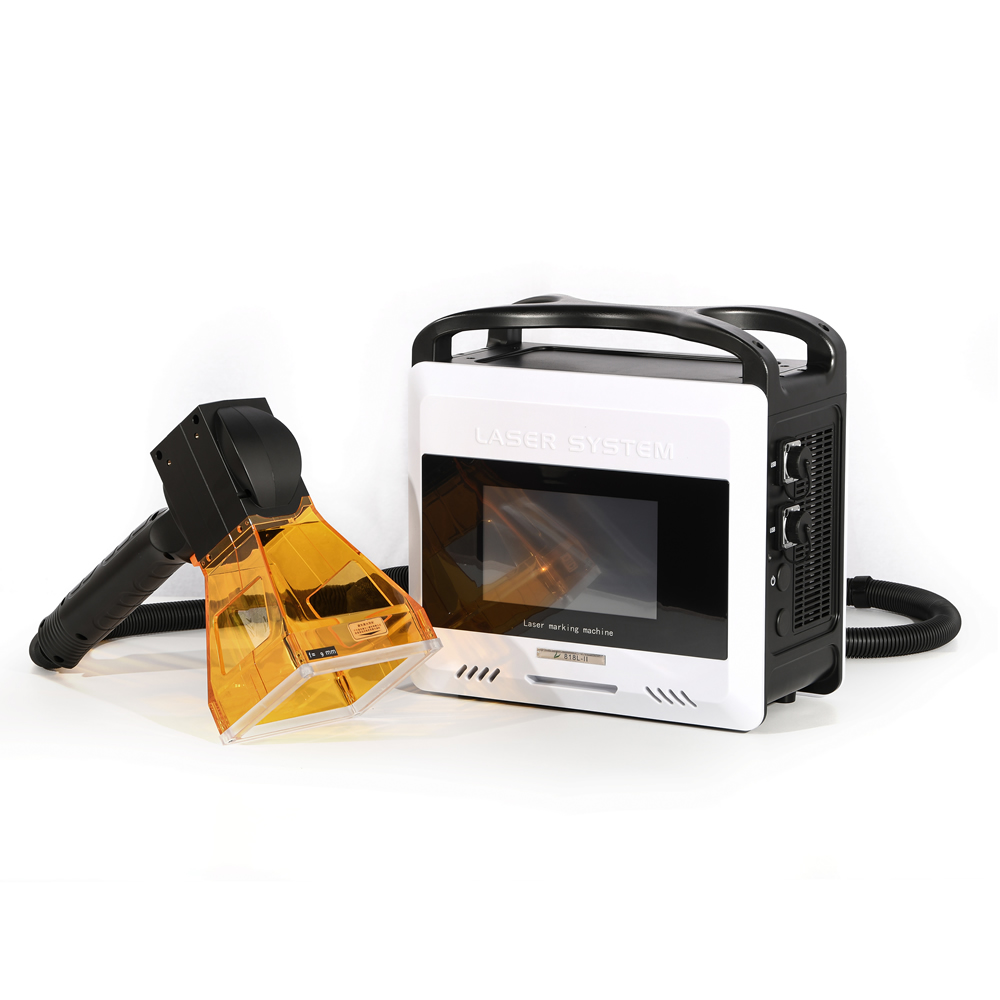

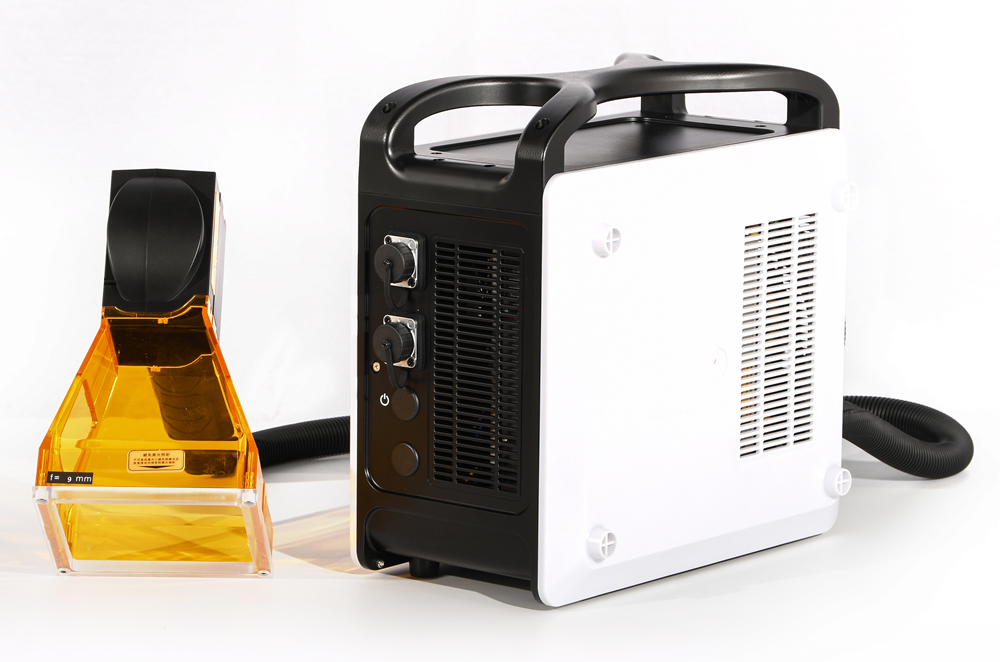

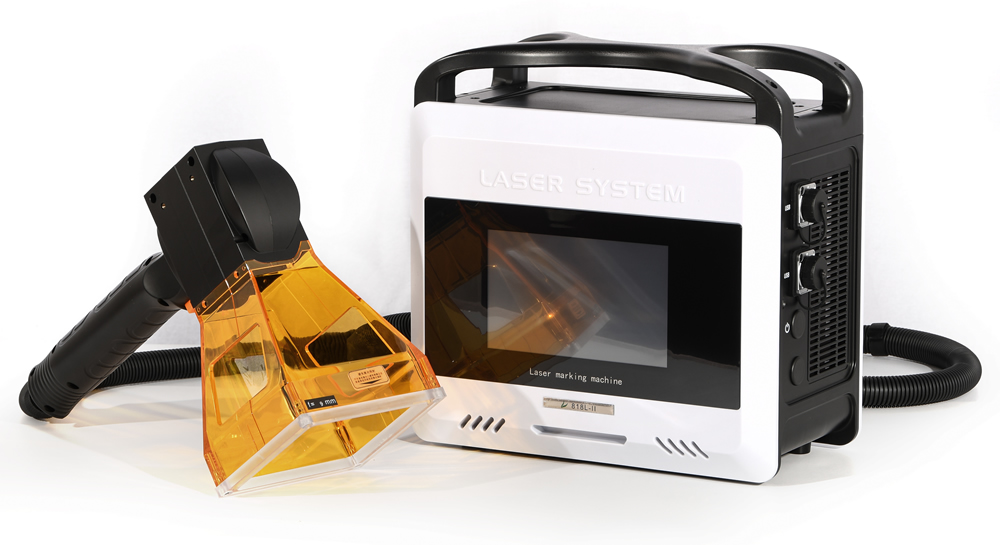

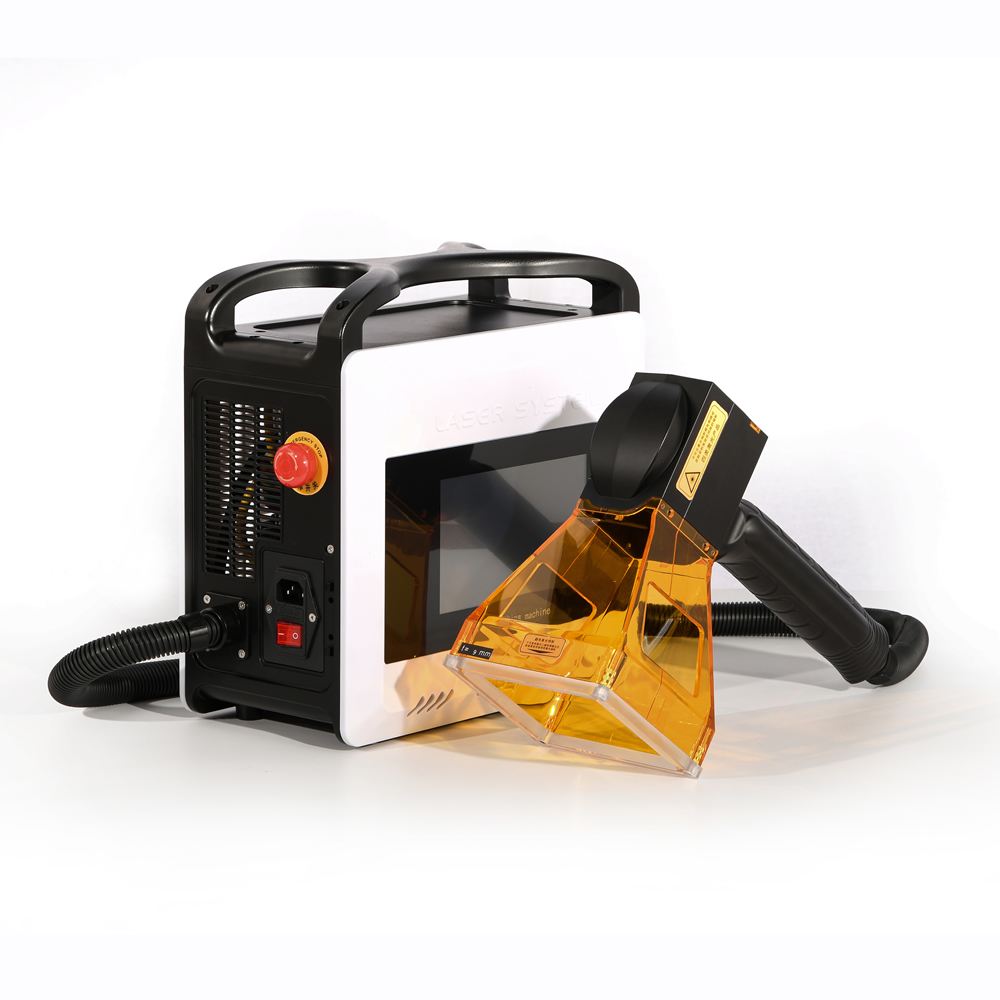

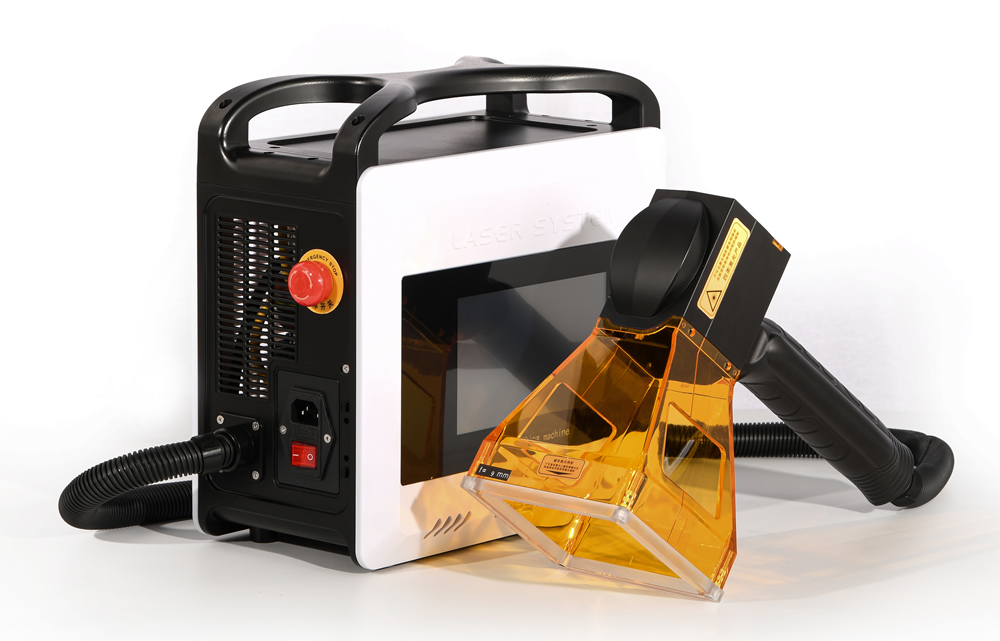

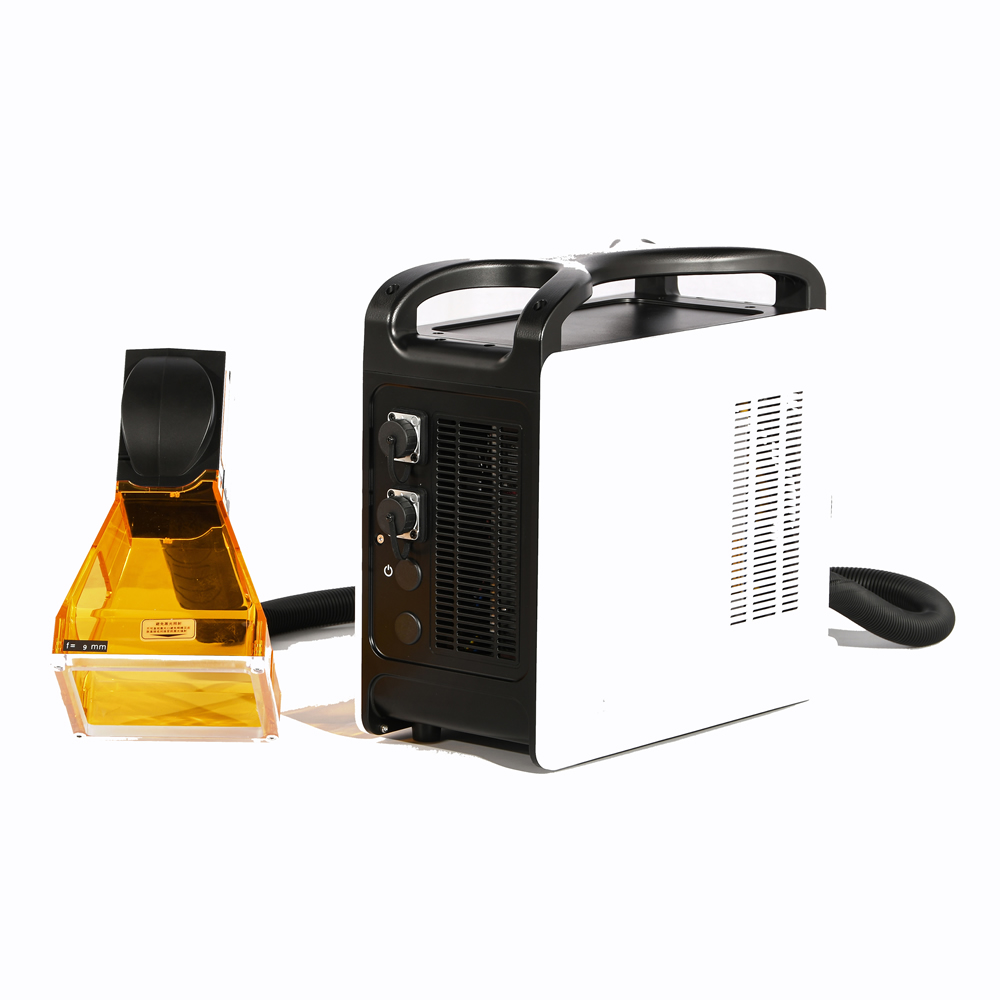

💎XS-820L IIF | Handheld portable Light-weight Fiber Laser marking machine set-Low cost Hot selling.
- ✅New design, easy operation for most application scenarios.
✅Light weight, small size, convenient for portable marking.
✅Power supply both by rechargeable battery and electric.
✅Long working life for main components.
✅High modulation frequency, fast marking speed, high accuracy and stable performance.
| Product parameter table | 820L IIF |
| Complete machine material | engineering plastic |
| Laser type | Fiber-optic laser generator |
| output power | ≥18W |
| laser wave length | 1064nm |
| Print way | High-precision dual-dimensional scanning mode |
| Scaling speed | ≤7000mm/s |
| master control | Highly integrated motherboard with a 7-inch screen |
| Maximum pulse energy | 0.75mJ |
| Frequency adjustable range | 30-60 kHZ |
| operating system | Linux |
| coolant passage | Normal temperature and cold air |
| Type of marking line | Dmatrix and vector all-in-one (both lattice and vector) |
| Reflector size | Standard equipment: 8.5mm |
| Scope of marking | 50mm 50mm (standard) 100mm 100mm (optional) |
| location mode | Red light positioning |
| Number of characters to be carved | Any line within the marking range |
| print out rate | 650 characters / second (the specific speed is related to the product material and print content) |
| form of a written or printed character | Simplified Chinese, traditional Chinese, English, Korean, Russian, Arabic numerals and other standard character library |
| file format | BMP/DXF/HPGL/JPEG/PLT |
| Barcode / QR code | CODE39, CODE128, CODE126, EAN 13, PDF417,01 CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE, etc |
| source | 220V |
| Maximum power consumption | ≤200W |
| Net weight of machine (host + control box) | 7.8KG |
| Handheld size | 325mmX79mmX151mm |
| Control box size | 310mmX260mmX307mm |
| Overvoltage category | â…¡ |
| Adapt to the temperature | 0-40℃ |
| Relative humidity of environment | 30-85 RH (no condensation) |
